Perfect visuals and maximum flexibility with the Infiled EZ 2.6mm LED module
When it comes to perfectly showcasing brands and products at trade shows, professional exhibitors rely on uncompromising visual quality. With the Infiled EZ 2.6mm LED module, our AVMS rental pool offers an innovative solution that impresses with a fine pixel pitch of 2.6mm and outstanding color brilliance. Whether you want to create a wall-to-wall LED display or prefer creative curved designs—this module offers complete creative freedom thanks to its integrated angle adjustment of -5° to +10 °.
Technical perfection and well-designed handling for demanding live communication
The Infiled EZ module combines top-notch image performance with maximum practicality for modern trade show construction. Weighing just 5.9 kg per cabinet and featuring an intelligent one-handed quick-release system, even complex LED walls can be set up in no time. The universal modules support both front- and rear-access maintenance, making service work extremely straightforward and quick to perform directly at the trade show booth.
Thanks to a brightness of 1,000 nits and a high refresh rate, your product presentations, animations, and promotional videos will shine with absolutely no flicker and high contrast—even in brightly lit exhibition halls. Our experienced team at AVMS handles seamless integration into standard system booths and ensures that your message reaches your audience with pinpoint accuracy. In addition, we offer professional content support to ensure that your digital content is showcased to its fullest potential on the new screens.
The standout feature of the Infiled EZ module is its extremely low weight of just under 5.9 kg per cabinet. This significant weight reduction offers tangible benefits in modern trade show construction: The structural requirements for the ceiling construction are drastically reduced, which generally lowers the costs associated with complex suspension points. In addition, the installation team benefits from significantly less physical strain during handling, which speeds up assembly at the trade show booth and makes it considerably safer.
- A fine pixel pitch of 2.6 mm for impressive detail.
- The built-in angle adjustment feature allows for flat, concave, and convex shapes.
- Ultra-lightweight magnesium cabinets with quick-release fasteners for easy setup and takedown.

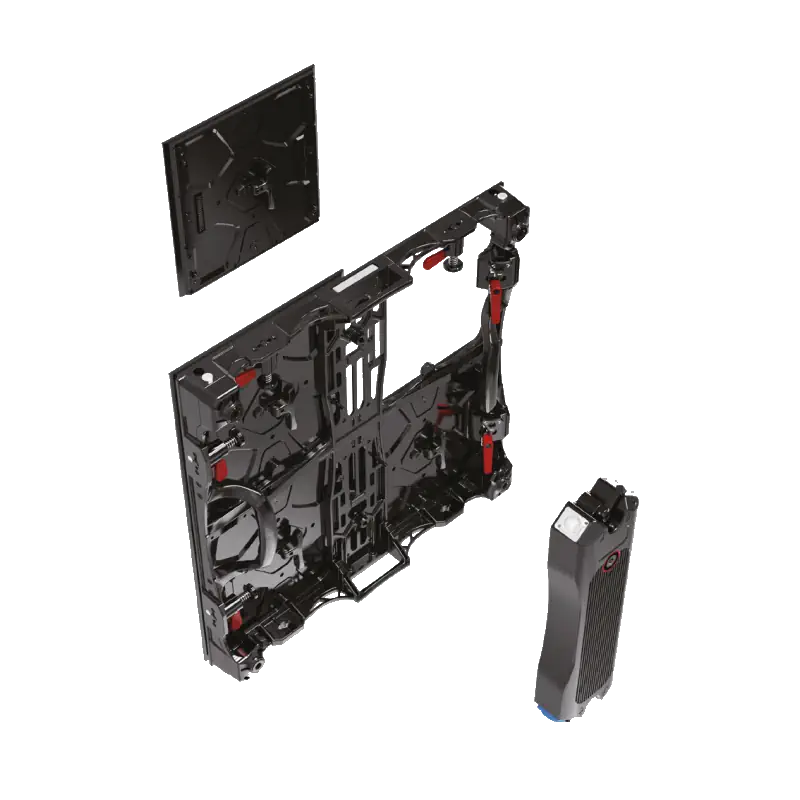

- Quick access to modules and PDUs for smooth trade show operations
- Optimized power consumption and silent operation without noisy fans.

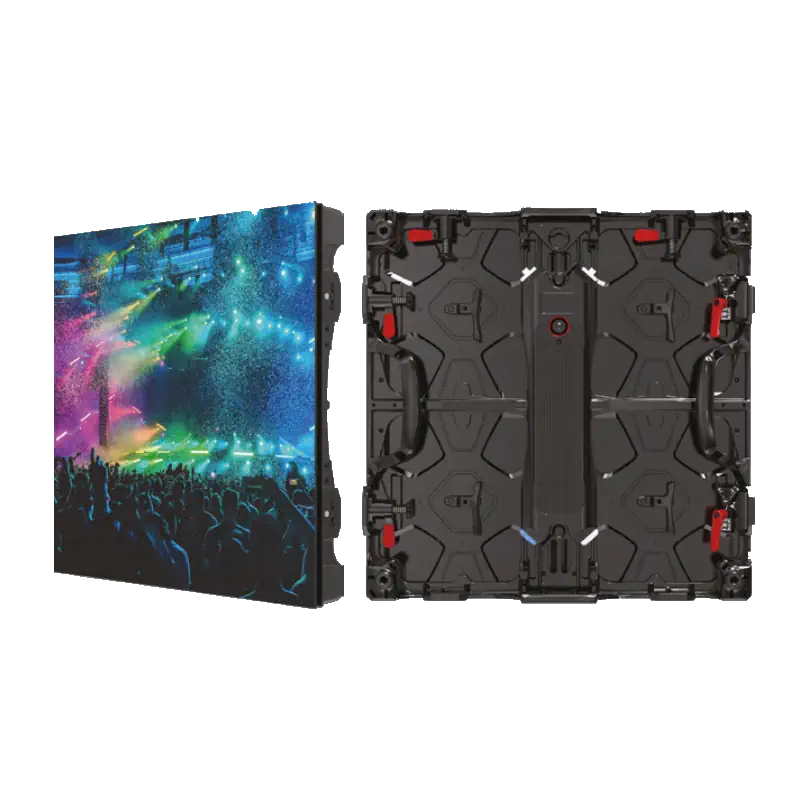

- Front service also possible during operation
- Compatible with the OCTAwall pro frame system from Octanorm
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information| Angabe | EZ 2.6 |
|---|---|
| Pixelabstand | 2,60 mm |
| Physikalische Dichte | 147.456 pixels/m2 |
| Virtuelle Dichte | N/A |
| LED Typ | 3-in-1 RGB |
| Modul Auflösung | 192×192 pixels |
| Modul Maße | 500x500x75,5 mm |
| Modul Gewicht | 5,9 kg |
| Helligkeit | 1000 nits |
| Maximaler Energieverbrauch | 120w/panel |
| Durchschnittlicher Energieverbrauch | 50w/panel |
| Einblickwinkel | 160°/160° |
| Betriebsstromversorgung | AC110-220V 50-60Hz |
| Betriebstemperatur | Betriebstemperatur −10℃~+45℃ |
| Refresh Rate | <3.840Hz (einstellbar) |
| Schutz-Klassifizierung | IP30 |
| Curve-Eigenschaften | – 5° bis +10° in 15 Schritten |
| Signal Eingangsquellen | VGA, DVI, HDMI, SDI |
| Receiver Karte | NOVASTAR Amor8S |
| Zulassungsprüfung | CE, ETL, FCC, RoHS |
