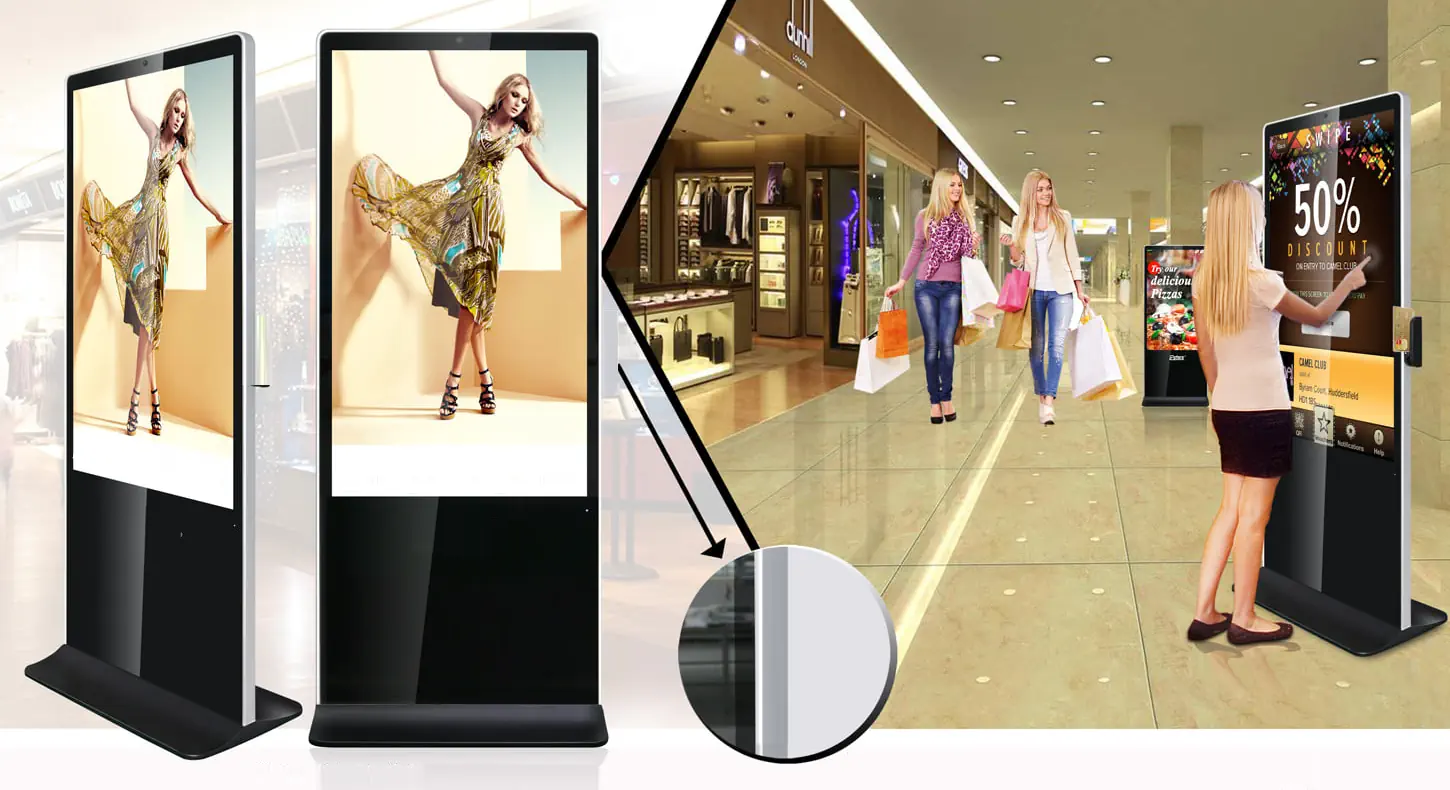

LCD- Stele 55" Touch Kiosk
This free-standing 55″ digital signage design display stele convinces in every respect: it is high-resolution, versatile, robust and durable and also extremely decorative. The integrated display has VGA/HDMI inputs and can be connected to any type of media player box, PC and video devices. Furthermore, it is equipped with a multi-touch function.
Suitable areas of application include public buildings such as train stations, airports, hospitals or museums, as well as retail.
- Design pedestal with integrated 55-inch LCD monitor
- Capacitive touch function (10 points multi-touch)
- 1920x1080 resolution
- 89/89/89 Viewing angle
- 7/24 hours operation
- Two high quality speakers
- Versatile use in public buildings or retail
Specifications
Detail drawing
Specifications
| Angabe | Wert |
|---|---|
| Panel Model | 55“ TFT LED |
| Abmessungen Panel | 1244,6 x 720,9 mm |
| Abmessung Display | 1209,6 x 680,4 mm |
| Auflösung | 1920×1080 Pixel |
| Seitenverhältnis | 16:9 |
| Bildschirm Gewicht | 17,5kg |
| Kontrast | 1400:1 |
| Helligkeit | 500 cd/m² |
| Betrachtungswinkel | 89/89/89/89 |
| Pixel Pitch | 0,63 x 0,63 |
| Touch | Kapazitiver 10-Punkte-Touch |
| Responsetime | 6 msec |
| Sound | 2 x 10 W |
| Gewicht gesamt | 95,2 kg |
| Anschlüsse | DP input; HDMI input; VGA input; Type-C input (optional); Audio input; Earphine output; AC input |
| Stromverbrauch | 94 W |
| Gesamtmaße | 1884x65x790 |
| Modellbezeichnung | RCS-550DL |
Detail drawing
